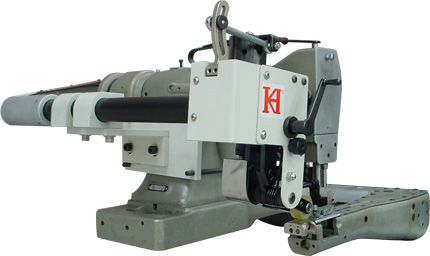

SU-93   Puller for Feed-off-the-arm Machine






¡@

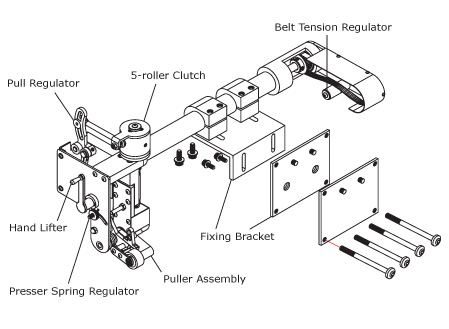

  • EASY & RECOVERABLE INSTALLATION:  Installation of SU puller is extremely easy and simple. Clamp two plates and sewing machine together. Then fix the bracket and whole set of puller on one of those plates behind the machine.

  • No damage will be caused on the sewing machine.

  • RECOVERABLE INSTALLATION. SU-puller can be install on other machine.

  • 5-ROLLER CLUTCH can support shorter stitch length. (Over 24 stitches in 1 inch)

  • Special designed gear and bearing can minimize the extra burden on the sewing machine. Su-puller is very light and easy.

  • Belt's tension is adjustable.

  • Pulling  length is adjustable.

¡@





    For SU-93 Series
Given Parts
91-034 91-035 93-074


20mm
Plastic smooth roller


20mm
Steel pulling gear
¡@


Lower  puller
91-017 + 93-075


Special Device for Puller Lifting
¡@
Given Parts
93-036

Teflon Gear Puller
¡@
