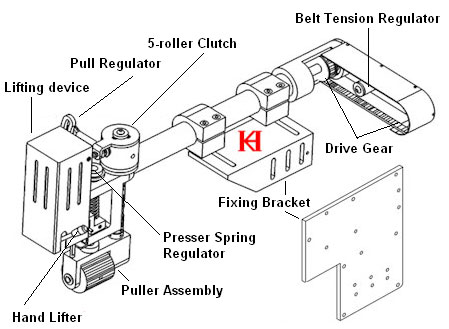

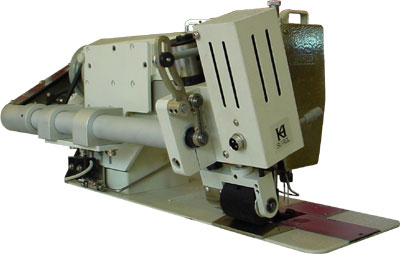

SU-92PL   Plastic Puller for 2-needle Machine with Lifting Device
  SU-92ML  Steel Gear Puller for 2-needle Machine with Lifting Device
¡@

¡@



¡@



¡@

  • A Lifting Switch is provided to be  installed on the Reverse-feed control lever. The puller will lift up when reverse stitching.

  • Another Lifting Switch is provided to be  installed on the knee switch of presser foot lifting. The puller will life up together with the presser foot.

  • ZERO DISTANCE : SU91 puller is beyond the presser bar. It is never get closer to the presser feet. Distance is a significant factor for pulling performance. Closer the puller, better the pulling performance. Zero distance can make curve pulling possible, other puller only can support straight sewing.

  • EASY & RECOVERABLE INSTALLATION:  Installation of SU puller is extremely easy and simple. A Plate with all possible screw hole is replaced the original machine rear cover. Fixing bracket is fixed on this plate.

  • No damage will be caused on the sewing machine.

  • RECOVERABLE INSTALLATION. SU-puller can be install on other machine.

  • 5-ROLLER CLUTCH can support shorter stitch length. (Over 24 stitches in 1 inch)

  • Special designed gear and bearing can minimize the extra burden on the sewing machine. Su-puller is very light and easy.

  • Belt's tension is adjustable.

  • Pulling  length is adjustable

¡@ ¡@

    For SU-92 Series
Given Parts
0079P 0079S 9285


 Upper Puller
 Plastic smooth roller


Upper Puller
 Steel Gear

Standard supplementary puller
¡@
Reverse-feed Switch - Lifting (For SU-92L only)

 A Lifting Switch is provided to be  installed on the Reverse-feed control lever. The puller will lift up when reverse stitching.

Knee Lifting Switch - Lifting (For SU-92L only)

Another Lifting Switch is provided to be  installed on the knee switch of
presser foot lifting. The puller will life up together with the presser foot.

¡@
¡@
Optional Parts

9289P


¡@


     Spring Type Lower Supplementary Roller
      (Flared Plastic Roller)

      It is mainly for curved waistband,
      fixed on the table behind the needle.
¡@

9289PCU


¡@



         Upper Puller Assembly

   Flared, Rouletted Steel Roller. It is mainly for curved waistband.
¡@
9279CU 9279P 9279S



  Upper Puller Assembly
(Flared, Roulette Steel Roller)
It is mainly for curved waistband.
¡@


 Upper Puller Assembly
(Smooth Plastic Roller)


Upper Puller Assembly
(Steel Puller Gear)
0079CU 0089P 0089PCU

  Upper Puller
Flared, Rouletted
(for Curved Waistband)
¡@


Lower supplementary roller
 Plastic smooth roller
¡@
Lower supplementary
roller
Flared, Rouletted
(for Curved Waistband)
¡@
