SU-91 Puller for 1-needle Machine
   Demo: SU-91 on Juki 1-needle Machine

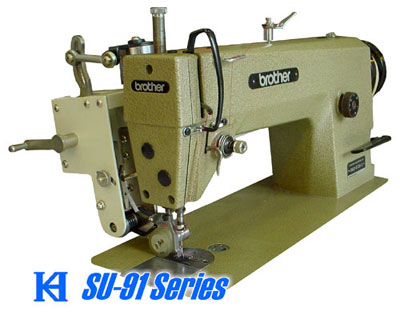

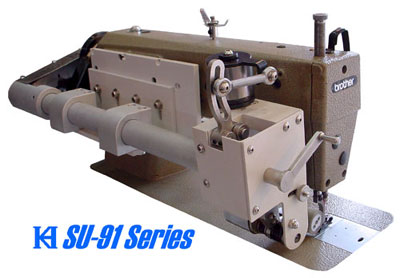

    Demo: SU-91 on Brother 1-needle Machine

chick the below

¡@

¡@

¡@



  • ZERO DISTANCE: SU91 puller is beyond the presser bar. It is never get closer to the presser feet. Distance is a significant factor for pulling performance. Closer the puller, better the pulling performance. Zero distance can make curve pulling possible, other puller only can support straight sewing.

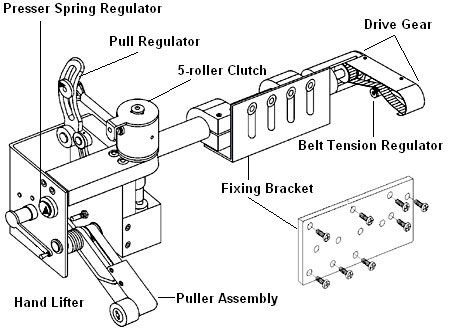

  • EASY & RECOVERABLE INSTALLATION:  Installation of SU puller is extremely easy and simple. A Plate with all possible screw hole is replaced the original machine rear cover. Fixing bracket is fixed on this plate.

  • No damage will be caused on the sewing machine.

  • RECOVERABLE INSTALLATION. SU-puller can be install on other machine.

  • 5-ROLLER CLUTCH can support shorter stitch length. (Over 24 stitches in 1 inch)

  • Special designed gear and bearing can minimize the extra burden on the sewing machine. Su-puller is very light and easy.

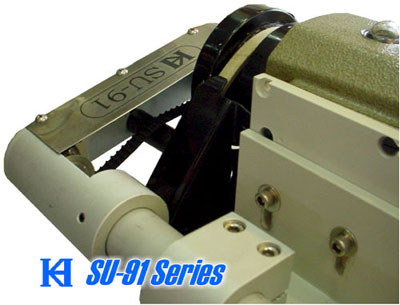

  • Belt's tension is adjustable.

  • Pulling  length is adjustable.




    For SU-91 Series
Given Parts
91-034 91-035

20mm Plastic smooth roller
¡@
 20mm Steel pulling gear
¡@


¡@

Reverse-feed Switch - Lifting (For SU-91L only)

 A Lifting Switch is provided to be  installed on the Reverse-feed control lever. The puller will lift up when reverse stitching.
¡@

Knee Lifting Switch - Lifting (For SU-91L only)

Another Lifting Switch is provided to be  installed on the knee switch of
presser foot lifting. The puller will life up together with the presser foot.

¡@
¡@
Optional Parts
P91R P91L P91 P91F



Special design presser feet with Left Compensating Guide
Size:   1/32", 1/16", 1/8", 3/16",  1/4"




Special design presser feet with Right Compensating Guide
Size:   1/32", 1/16", 1/8", 3/16",  1/4"
¡@

Special design
presser feet
for puller


Special design
presser feet
for Hemming Use
Size:   3/4", 1", 1-1/4"

NP-675

 FD-675L KH5-NP KH5-FD

Needle Plate with a roller behind needle
Feed Dog for NP675 needle plate
¡@

Needle plate

Feed Dog

Needle in center
NP-3  FD-3  NP-4  FD-4  feed dog

Needle plate
Feed Dog
Needle plate
Feed Dog
For Hemming or other attachment For Hemming or other attachment
NP-5  FD-5  NP-6  needle plate FD-6  feed dog

Needle plate
Feed Dog
Needle plate
Feed Dog
For Hemming or other attachment For Hemming or other attachment
