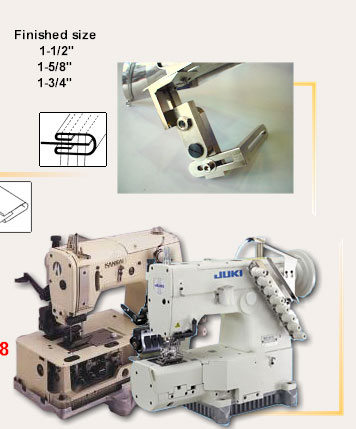

Attachment for Waist Band Sewing

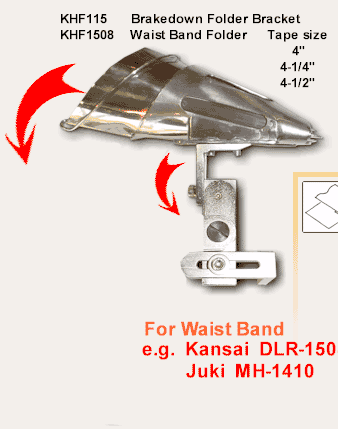

KHF115 & KHF1508

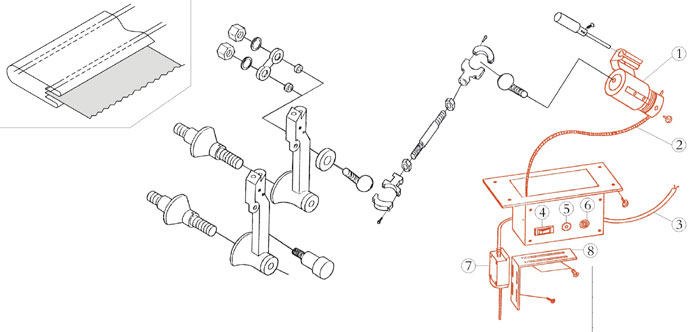

KH-1508 Under-thread Skipping Controller for Kansai DLR-1508 Machine.

This controller is specially designed for waist band sewing. When the knee switch is pressed, the looper holder
is pulled from its original position and unable to work normally. This make the bottom thread can not knot with
the surface thread. Once the knee switch is released, the looper holder return and able to work normally again.

Gauge Set for Kansai Special 1508	Model No.	Needle	Needle Space Distribution
	1/4 + 3/4 + 1/4	4	1/4" + 3/4" + 1/4" = 1-1/4"
	1/4 + 13/16 + 1/4	4	1/4" + 13/16" + 1/4" = 1-5/16"
	1/4 + 7/8 + 1/4	4	1/4" + 7/8" + 1/4" = 1-3/8"
	1/4 + 1 + 1/4	4	1/4" + 1" + 1/4" = 1-1/2"
	1/4 + 1-1/8 + 1/4	4	1/4" + 1-1/8" + 1/4" = 1-5/8"
	1/4 + 1-1/4 + 1/4	4	1/4" + 1-1/4" + 1/4" = 1-3/4"
	1/4 + 1-1/2 + 1/4	4	1/4" + 1-1/2" + 1/4" = 2"

Roller for 1508 Machine
02-184cu Upper roller 02-197cu Lower roller	00-201 Upper Puller (Rouletted) 02-197 Lower Puller (Smooth)	00-260 Upper Puller Gear 60 Teeth (Steel) 02-197 Lower Puller (Smooth)
02-175 Upper 60T Steel Gear	02-448 Upper Smooth Puller	02-184 Upper Rouletted Steel Roller
00-0610-0 Upper Double Puller 00-2050-0 Lower Double Puller
