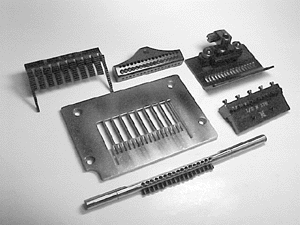

Multi-needle Gauge Set for Kansai Special
|
||
| Model No. |
Needle
|
Needle Space Distribution (ns = Number of needle space ) |
| 1406~1412 P,PL | ¡@ | ¡@ |
| 3/16 x 6N | 6 | 3/16" x 5ns = 15/16" |
| 1/4 x 6N | 6 | 1/4" x 5ns = 1-1/4" |
| 5/16 x 6N | 6 | 5/16" x 5ns = 1-9/16" |
| 3/8 x 6N | 6 | 3/8" x 5ns = 1-7/8" |
| 7/16 x 6N | 6 | 7/16" x 5ns = 2-3/16" |
| 3/16 x 8N | 8 | 3/16" x 7ns = 1-5/16" |
| 1/4 x 8N | 8 | 1/4" x 7ns = 1-3/4" |
| 5/16 x 8N | 8 | 5/16" x 7ns = 2-3/16" |
| 3/8 x 8N | 8 | 3/8" x 7ns = 2-5/8" |
| 7/16 x 8N | 8 | 7/16" x 7ns = 3-1/16" |
| 3/16 x 10N | 10 | 3/16" x 9ns = 1-11/16" |
| 1/4 x 10N | 10 | 1/4" x 9ns = 2-1/4" |
| 3/16 x 12N | 12 | 3/16" x 11ns = 2-1/16" |
| 1/4 x 12N | 12 | 1/4" x 11ns = 2-3/4" |
| 2-1/4 (13N) | 13 | 1/4" +(1/8" x 2)+(1/4" x 2)+(1/8" x 2)+(1/4" x 2)+(1/8" x 2)+1/4" =2-1/4" |
| 1/8 x 17N | 17 | 1/8" x 16N = 2" |
| 1/8 x 23N | 23 | 1/8" x 22N = 2-3/4" |
