關西多針車針位
|
||
| Model No. | 針數 | 針距分配 |

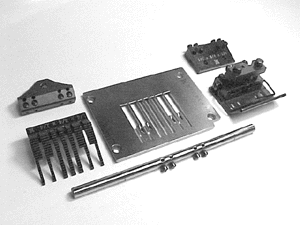

| 1404PSF (1404WB) | ||
| 1/4 + 1/2 + 1/4 | 4 | 1/4" + 1/2" + 1/4" = 1" |
| 1/4 + 5/8 + 1/4 | 4 | 1/4" + 5/8" + 1/4" = 1-1/8" |
| 1/4 + 3/4 + 1/4 | 4 | 1/4" + 3/4" + 1/4" = 1-1/4" |
| 1/4 + 7/8 + 1/4 | 4 | 1/4" + 7/8" + 1/4" = 1-3/8" |
| 1/4 + 1 + 1/4 | 4 | 1/4" + 1" + 1/4" = 1-1/2" |
| 1/4 + 1-1/8 + 1/4 | 4 | 1/4" + 1-1/8" + 1/4" = 1-5/8" |
| 1/4 + 1/4 + 1 + 1/4 | 5 | 1/4" + 1/4" + 1" + 1/4" = 1-3/4" |
| 3/16 + 5/8 + 3/16 | 4 | 3/16" + 5/8" + 3/16" = 1" |
| 3/16 + 3/4 + 3/16 | 4 | 3/16" + 3/4" + 3/16" = 1-1/8" |
| 3/16 + 7/8 + 3/16 | 4 | 3/16" + 7/8" + 3/16" = 1-1/4" |
| 3/16 + 1 + 3/16 | 4 | 3/16" + 1" + 3/16" = 1-3/8" |
| 3/16 + 1-1/8 + 3/16 | 4 | 3/16" + 1-1/8" + 3/16" = 1-1/2" |
