奧林比安 KHM 系列

Olympian KHM 奧林比安

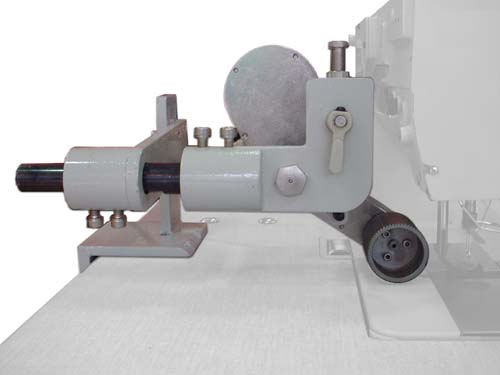

多功能平縫機用拖輪 Multi-purpose Puller for Flat-bed Machine

KHM-600

適用車型 Adaptable Machine :

雙針平縫機
Flatbed 2 Needle Lockstitch Machine
e.g. Juki LH-3128, Brother TN-841, TN-842

人字縫縫紉機
Zigzag Stitching Machine
e.g. Juki LZ2280, LZ2290 series, Brother ZM-8500

上下送布平縫機
Unison-feed, Lockstitch Machine
e.g. Juki DNU-1541, LU-1500N series,
Brother SB-7270

單針針送平縫機
Needle-feed, 1 Needle Lockstitch Machine
e.g. Juki DLN-9010, DLN-54110N, Brother SN-7210

雙針雙環縫平縫機
Flatbed 2 Needle Double Chainstitch Machine
e.g. Juki MH-380, MH-382, Brother DB-2610

上拖輪 Upper Roller (直徑diameter 51mm)
寬度 Width	光滑膠面 Smooth Plastic	滾花合金 Rouletted Alloy Steel
15mm	KHM-6015P	KHM-6015S
20mm	KHM-6020P	KHM-6020S
25mm	KHM-6025P	KHM-6025S
30mm	KHM-6030P	KHM-6030S
35mm	KHM-6035P	KHM-6035S
40mm	KHM-6040P	KHM-6040S
45mm	KHM-6045P	KHM-6045S
50mm	KHM-6050P	*KHM-6050S

下拖輪 Lower Roller (直徑diameter 12mm)
寬度 Width	光滑膠面 Smooth Plastic	滾花合金 Rouletted Alloy Steel
50mm	*KHM-6050LP	KHM-6050LS

*KHM-6050P及KHM-6050LP為標準裝配拖輪
*KHM-6050P&KHM-6050LP are the regular assembled roller.

單針平縫機用拖輪 Puller for Flat-bed 1 Needle Lockstitch Machine

上拖輪 Upper Roller (直徑diameter 30mm)
寬度 Width	光滑膠面 Smooth Plastic	滾花合金 Rouletted Alloy Steel
10mm	*KHM-6110P	KHM-6110S
15mm	KHM-6115P	KHM-6115S
20mm	KHM-6120P	KHM-6120S
25mm	KHM-6125P	KHM-6125S
30mm	KHM-6130P	KHM-6130S

*KHM-6110P 為標準裝配拖輪
*KHM-6110P is the regular assembled roller.

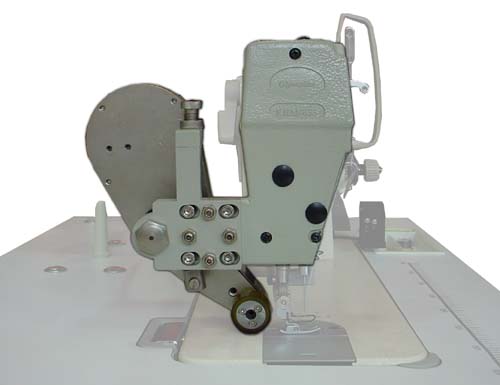

全自動電子拖輪 Full Automation Electronic Puller

1. 全自動同步電子拖輪由拖輪組件、馬達、微型電腦、步距控制儀組成。

2. 可與送布齒進行同步的準確送布動作。

3. 獨立馬達推動，不會增加縫紉機的折舊和負擔。

4. 安裝方面，無需破壞縫紉機身，亦無需額外專門技術。

5. 倒針時，拖輪可同步逆轉，無需提升拖輪。

6. 彈簧式壓力裝置，使拖輪壓力可自由調教, 適用於不同厚度物料及十字縫接口。

7. 限制轉速︰每分鐘6000轉。

8. 電壓：可在 85V ~ 260V，自動變壓。

1. Full automation synchronous electronic puller is a combination of puller assembly, self-motor, microcomputer & stitch length control panel.

2. Synchronous pulling with the feeding mechanism.

3. Self-motor driving, No extra-loading and depreciation of the sewing machine.

4. Easy installation, no damage to the sewing machine, no special technical skills.

5. In reverse stitching (back-tack), puller can turn reverse synchronous with the machine's feeding. Puller lifting is not needed.

6. Suspension device make the puller adoptable for different thickness of material and cross seam.

7. Maximum Speed: 6000 rpm.

8. Voltage: 85V ~ 260V Auto-switch.
