奧林比安 KHM 送料機系列
側送型送料器 Lateral Feeder
多用於包縫工作, 置於縫紉機的右側, 把綑條送至包縫器。
It is mainly used for binding, mounted on the table at the right hand side of sewing machine and feed tape into the binder.
|
馬達動力 Motor
power
|
8W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
3.3kg/3.8kg
|
|
機身量度 Machine
Meas.
|
250mm
x 158mm x 220mm
|
|
裝箱量度 Carton
Meas.
|
350mm
x 258mm x 320mm
|
垂直型送料器 Downward Feeder
多用於面貼或鬆緊帶, 置於縫紉機後,由上而下把綑條或鬆緊帶送至機前。
It is mainly used for tape or elastic sewing, mounted behind the sewing machine and feed material into the machine.
|
馬達動力 Motor
power
|
8W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
4.8kg/5.3kg
|
|
機身量度 Machine
Meas.
|
280mm
x 225mm x 145mm
|
|
裝箱量度 Carton
Meas.
|
380mm
x 325mm x 245mm
|
光學側送型送料器 Optical Lateral Feeder
多用於包縫工作, 置於縫紉機的右側,把綑條送至包縫器。
光學感應器比一般感應器更敏感, 但不適用於透明物料。
It is mainly used for binding, mounted on the table at the right hand
side of sewing machine and feed tape into the binder. Optical detector
is more sensitive than the normal one. But it is not suitable for transparent
material.
|
馬達動力 Motor
power
|
8W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
3.3kg/3.8kg
|
|
機身量度 Machine
Meas.
|
250mm
x 158mm x 220mm
|
|
裝箱量度 Carton
Meas.
|
350mm
x 258mm x 320mm
|
光學垂直型送料器 Optical Downward Feeder
多用於面貼或鬆緊帶, 置於縫紉機後,由上而下把綑條或鬆緊帶送至機前。 光學感應器比一般感應器更敏感, 但不適用於透明物料。
It is mainly used for tape or elastic sewing, mounted behind the sewing machine and feed material into the machine. Optical detector is more sensitive than the normal one. But it is not suitable for transparent material.
|
馬達動力 Motor
power
|
8W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
4.8kg/5.3kg
|
|
機身量度 Machine
Meas.
|
280mm
x 225mm x 145mm
|
|
裝箱量度 Carton
Meas.
|
380mm
x 325mm x 245mm
|

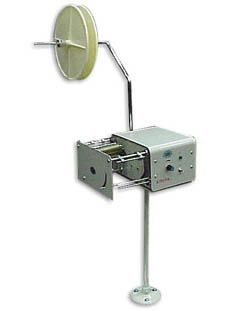

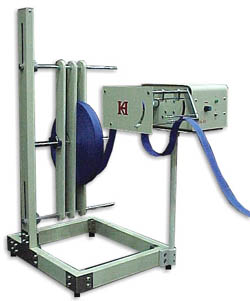

自動送料機 Auto-feeding Machine
作多用途送料,尤其配合KHM-808/809切帶機使用。可輸送較重或有彈性的物料。
For multi-purpose pre-feeding, especially for heavier and elastic material. It is applicable for KHM808/809 Cutting Machine.
|
馬達動力 Motor
power
|
12W
|
|
電壓 Power
|
100V~240V
|
|
淨重/毛重
N.W./G.W.
|
4.3kg/4.8kg
8.4kg/8.7kg |
|
機身量度 Machine
Meas.
|
280mm
x 225mm x 145mm
700mm x 105mm x 65mm |
|
裝箱量度 Carton
Meas.
|
380mm
x 325mm x 245mm
720mm x 125mm x 85mm |

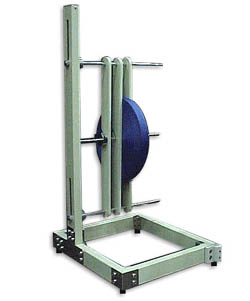

綑條架 Tape Reel Stand
可放置綑條等材料, 提高工作效率。
Tape or similar material can be placed properly for higher effectiveness.
|
淨重/毛重
N.W./G.W.
|
8.4kg/8.7kg
|
|
機身量度 Machine
Meas.
|
700mm
x 105mm x 65mm
|
|
裝箱量度 Carton
Meas.
|
720mm
x 125mm x 85mm
|
