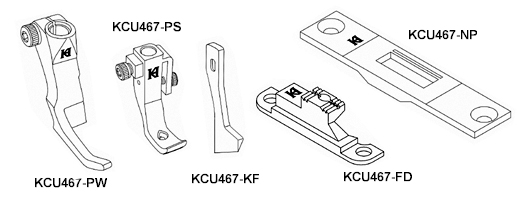

KCU-467-GS Edge Cutting Gauge set for Durkopp Adler 467/767 ( optional size 4.8mm and 3.0mm ) |
|
 |
|
 |
|
| KH367-NP | Grooved feed dog's main purpose is solving the problem of unbalance between upper and lower layers. It must be used together with KH367-PR/-PL/-PF presser feet. | KH367-HNP |
| Needle plate for piping, which is used together with KH367FDP or KH367-FD | Needle plate for larger piping, which is used together with KH367-HFD | |
 |
||
| KH367-FDP | KH367-FD | KH367-HFD |
| Grooved feed dog for 5mm piping, totally 11.5mm wide | Feed dog for piping, 11.5mm wide | Grooved feed dog for 6mm piping, which is used together with KH367-HNP |
| KH467-NP6/FD6 | KH467-NP11/FD11 | KH467Q-NP/FD |
 |
|
 |
|
Feed Dog
8mm wide Max Stitch Length 6mm |
Feed Dog
8mm wide Max Stitch Length 11mm |
Used only with KP467Q presser feet For Upturned material or seam with a large drop-height |
| KH467N081-NP/FD | KH467-B |
367-200340
needle plate 367-210340 feed dog |
 |
 |
 |
| Used only with KP367-N081, R091, -L081 presser feet for narrow operation. | Feed dog enable the binder and its arm KHB-767 rocking together | Wider feeding area for piping or other operation |
| 0767-120064KH | 0767-200030 | KH767-NCS |
 Single Needle Needle Bar Complete
0767-120060 |
 Needle plate for 767-KFA-373-RAF-HP Max stitch length 9mm |
Single Needle Needle Holder with Screw |
|
0291-000159
Thread Guide 9203-312411 Screw |
||
 (It is for 0767-120060 only, not 0767-120050. We can supply a special screw to fix 0291-000159 on our 767-120050) |
||
