1.            全自動同步電子拖轆輪由上下拖輪、馬達、微型電腦、長度控制板組成。

2.            全由微電腦控制，無需機械帶動。

3.            拖輪可與送布齒同步進行準確的送布動作。

4.            安裝容易，無需額外專門技術

5.            利用微電腦控制板，容易調教拖轆輪速度及長度。

6.            拖輪由獨立馬達推動，不會增加縫紉機的折舊和負擔。

7.            倒針時，拖輪可同步逆轉，無需提升拖輪。

8.            彈簧式壓力裝置，使拖輪壓力可自由調教, 適用於不同厚度物料及接口的十字縫。

9.            沒有噪音和振動。

10.         限制轉速︰每分鐘6000轉。

11.         送布齒行程不可多於8mm。

12.         電壓：可在85V ~ 260V，自動變壓。

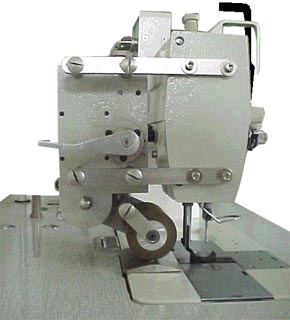

1.            Full automation synchronous electronic puller is a combination of upper and lower rollers, self-motor, microcomputer & control panel.

2.            Fully controlled by microcomputer, without mechanical driving.

3.            Synchronous and accuracy pulling with the feeding mechanism.

4.            Easy installation, no special technical skills are necessary.

5.            Easy to adjust puller speed and pulling length by control panel.

6.            The puller is droved by self-motor only. No extra-loading and depreciation of the sewing machine.

7.            In reverse stitching (back-tack), roller can full automatic reverse turning. No roller lifting is needed.

8.            Suspension device make the puller adoptable for different thickness of material and cross seam.

9.            No disturbing noise and vibration.

10.         Maximum Speed: 6000 rpm.

11.         Max Feed Dog Feeding Length: 8mm

12.         Voltage: 85V ~ 260V Auto-switch

速度控制儀   Speed Control Panel

連接縫紉機之感應器  Connecting Sensor
